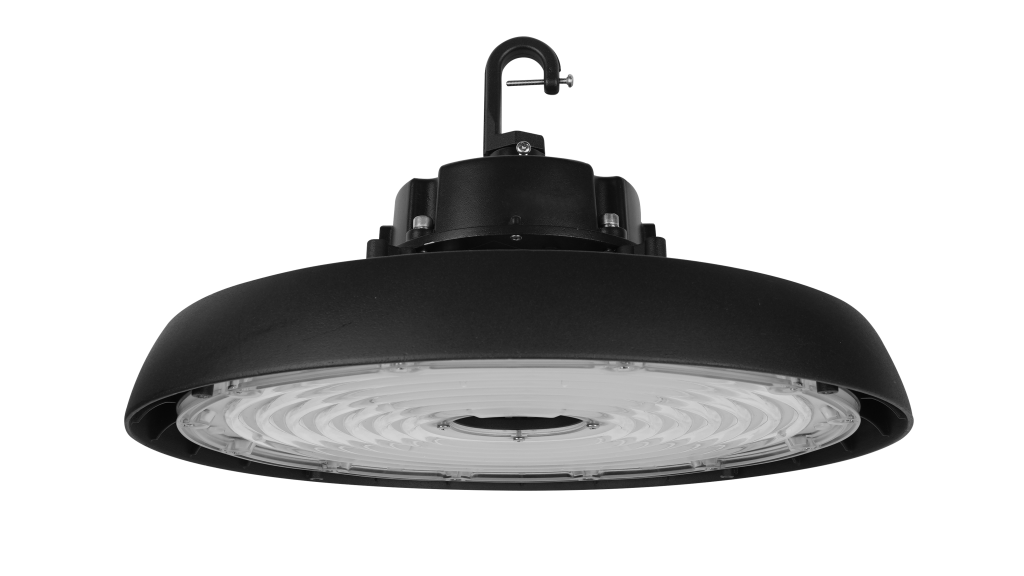

LED High Bay (URSA Series)
OVERVIEW :
With Overdrive High Bay it is easy to modernize your commercial or industrial application. It is a perfect replacement for HPS/metal halide lighting system. These are ideal for high ceilings in warehouses, manufacturing, grocery stores, farming industry or other indoor applications.
- Physical Characteristics:
- Aluminum shell provides better heat dissipation and high lumen efficacy
- Dimmable and compatible with most major brand dimmers on the market
- Clear polycarbonate lens over LEDs provides a high light efficacy. Standard 85° beam angle
PRODUCT DETAILS
| IMAGE | ITEM NO | DLC ID NO | Watt.(W) | Input Voltage (V) | CCT(R) | Lumen (lm) | CRI | Life | Beam Angle | Operating Temp. | Dimmable | CERTIFICATION |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
400 | PKL2IJ9Z | 100 | 120-277V | 5000K | 14500 | 80 | 50,000 | 85 | -40 TO +45 | 0-10v | DLC |
|
406 | S-M0J4HW | 150 | 120-347V | 5000K | 21000 | 80 | 50,000 | 85 | -40 TO +45 | 0-10v | DLC |
|
403 | PYDW8ME5K | 150 | 120-277V | 5000K | 22823 | 80 | 50,000 | 110 | -40 TO +45 | 0-10v | DLC |
|
402 | P3WTDCBC | 200 | 120-277V | 5000K | 28500 | 80 | 50,000 | 85 | -40 TO +45 | 0-10v | DLC |
|
404 | P588C1F5 | 200 | 120-347V | 5000K | 28500 | 80 | 50,000 | 85 | -40 TO +45 | 0-10v | DLC |
